Residential Batteries

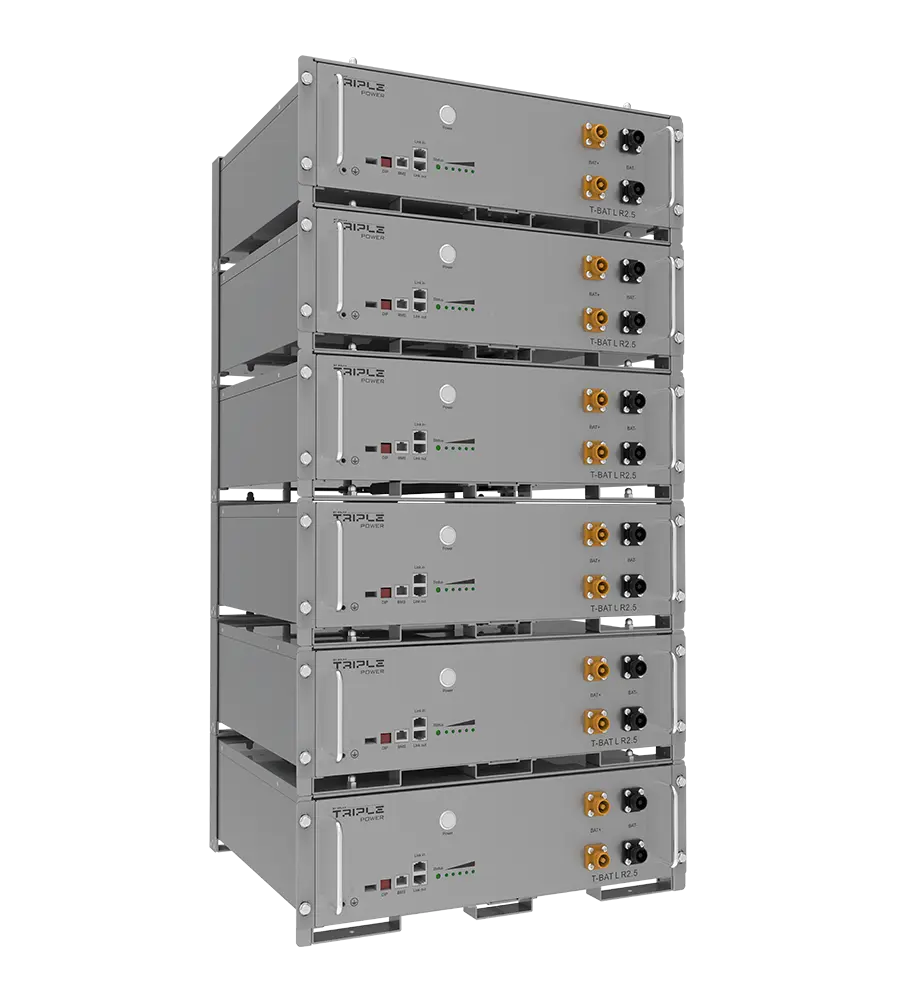

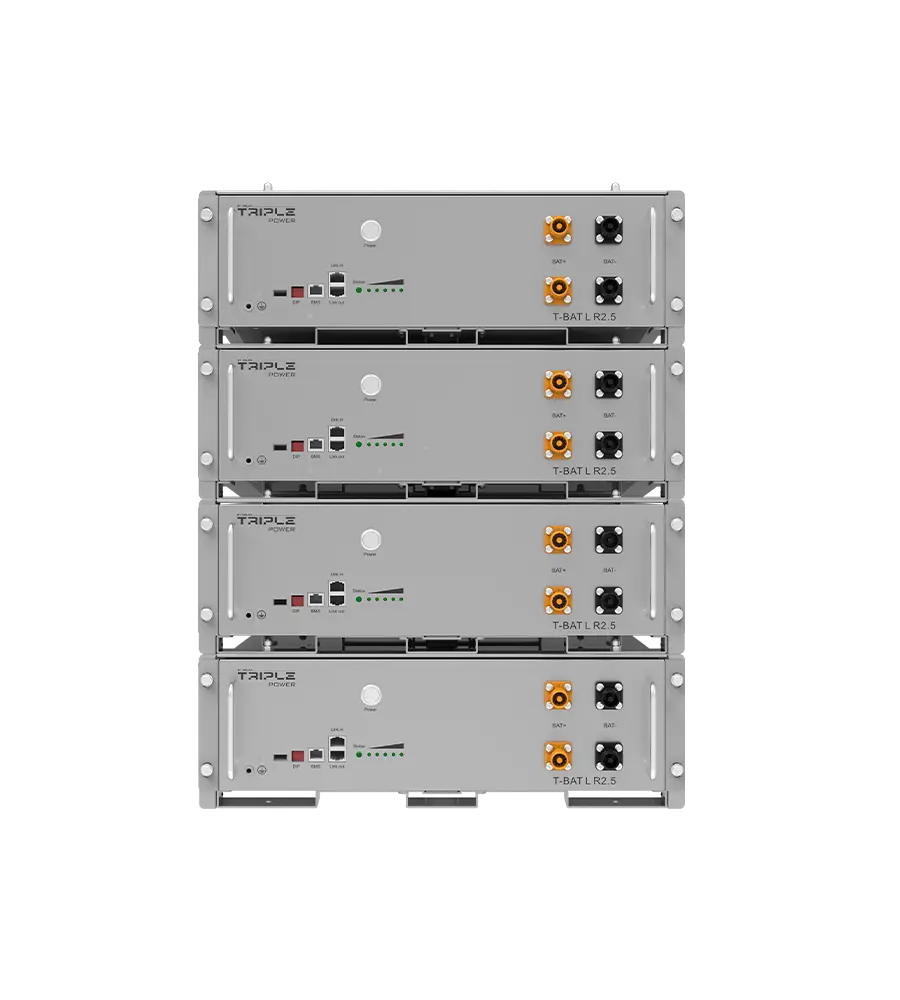

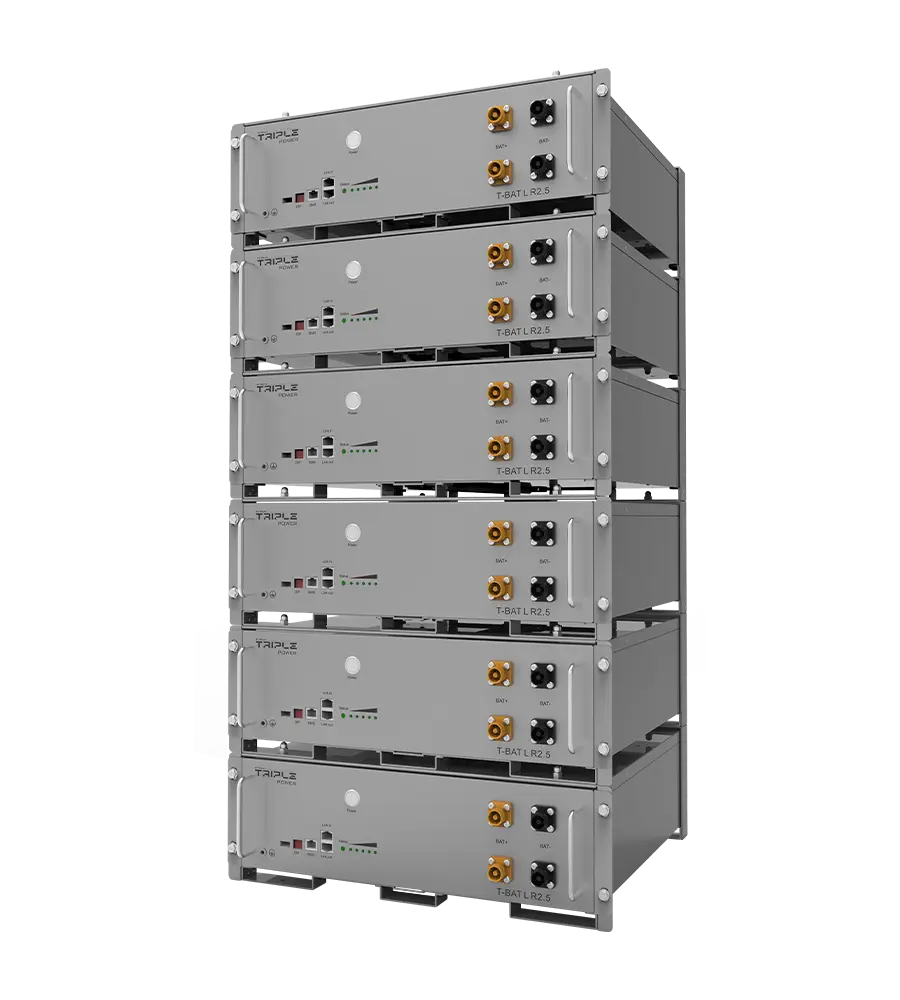

T-BAT-SYS-LV-R36

  • 3.6 kWh-58.8 kWh

T-BAT-SYS-LV R36 của SolaX sử dụng công nghệ pin LFP với dung lượng linh hoạt từ 3.6kWh đến 58.8kWh. Pin này kết hợp hoàn hảo với biến tần X1 HYBRID LV, tạo nên một giải pháp năng lượng linh hoạt cho nhu cầu dân dụng, dễ dàng lắp đặt và bảo trì.

Product Advantage

SolaX T-BAT-SYS-LV R36 có hiệu suất cao với hơn 6000 chu kỳ, khả năng truyền năng lượng hiệu quả và tối ưu công suất. Hệ thống quản lý thông minh hỗ trợ chẩn đoán từ xa, giúp bảo trì dễ dàng.  Khả năng thích ứng linh hoạt cho phép lắp đặt nhanh trên tường hoặc trong tủ, đồng thời dễ dàng mở rộng để đáp ứng nhu cầu ngày càng tăng.

Contact Us

Assured Reliability

  • LiFePO4 battery cell & high-performance processors

  • No toxic heavy metals or caustic materials

  • Soft start to protect BAT and INV from a sudden surge


High Performance

  • Long cycle life > 6000 times

  • High capacity utilization

  • Efficient energy transfer


Smart Management

  • Remote fault diagnosis, upgrade and maintenance


Flexible Adaptability


  • Wall quick bracket, or cabinet mounting optional

  • Easy to scale up


Product Parameters

  • T-BAT LR3.6
  • T-BAT LR7.2
  • T-BAT LR10.8
  • T-BAT LR14.4
  • T-BAT LR18.0
  • T-BAT LR21.6
  • T-BAT LR25.2
  • T-BAT LR28.8
  • T-BAT LR32.4
  • T-BAT LR36.0
  • T-BAT LR39.6
  • T-BAT LR43.2
  • T-BAT LR46.8
  • T-BAT LR50.4
  • T-BAT LR54.0
  • T-BAT LR57.6
  • T-BAT LR3.6
    • SYSTEM DATA
      Number of modules 1 Module
      Nominal capacity 3.6 kWh
      Max.output current 50 A
      Peak discharge current

      60 A (60 s)

      100 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR7.2
    • SYSTEM DATA
      Number of modules 2 Module
      Nominal capacity 7.3 kWh
      Max.output current 85 A
      Peak discharge current

      120 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR10.8
    • SYSTEM DATA
      Number of modules 3 Modules
      Nominal capacity 11.0 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR14.4
    • SYSTEM DATA
      Number of modules 4 Modules
      Nominal capacity 14.7 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR18.0
    • SYSTEM DATA
      Number of modules 5 Modules
      Nominal capacity 18.4 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR21.6
    • SYSTEM DATA
      Number of modules 6 Modules
      Nominal capacity 22.0 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR25.2
    • SYSTEM DATA
      Number of modules 7 Modules
      Nominal capacity 25.7 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR28.8
    • SYSTEM DATA
      Number of modules 8 Module
      Nominal capacity 29.4 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR32.4
    • SYSTEM DATA
      Number of modules 9 Modules
      Nominal capacity 33.1 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR36.0
    • SYSTEM DATA
      Number of modules 10 Modules
      Nominal capacity 36.8 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR39.6
    • SYSTEM DATA
      Number of modules 11Modules
      Nominal capacity 40.4 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR43.2
    • SYSTEM DATA
      Number of modules 12 Modules
      Nominal capacity 44.1 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR46.8
    • SYSTEM DATA
      Number of modules 13 Modules
      Nominal capacity 47.8 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR50.4
    • SYSTEM DATA
      Number of modules 14 Modules
      Nominal capacity 51.5 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR54.0
    • SYSTEM DATA
      Number of modules 15 Modules
      Nominal capacity 55.2 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20



  • T-BAT LR57.6
    • SYSTEM DATA
      Number of modules 16 Modules
      Nominal capacity 58.8 kWh
      Max.output current 120 A
      Peak discharge current

      150 A (60 s)

      200 A (15 s)


    • GENERAL
      Nominal voltage 51.2 V
      T-BAT LR3.6 Dimensions (L × W × H) 442 × 420 × 130 mm
      T-BAT L3.6 Weigh 33 kg
      Battery type Lithium iron phosphate
      IP rating of enclosure IP20
