Residential Batteries

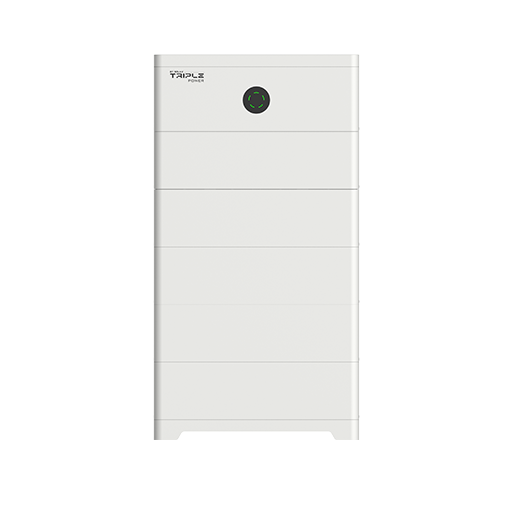

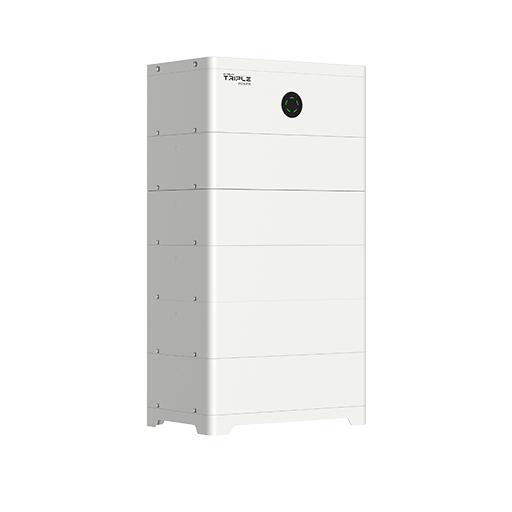

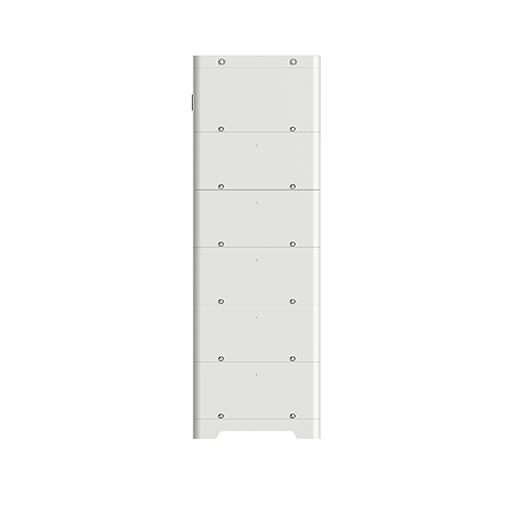

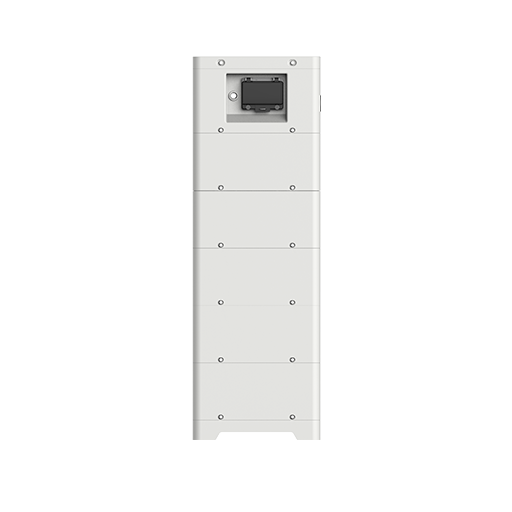

TSYS-HS51

  • 10.2 kWh-66.5 kWh

TSYS-HS51 có dải dung lượng rộng từ 10.2kWh đến 66.3kWh, thích hợp với đa dạng nhu cầu. Khả năng tương thích với TCBox-70 cho phép mở rộng tới 3 cụm pin để tăng dung lượng lưu trữ.

Product Advantage

TSYS-HS51 hỗ trợ dòng sạc/xả lên đến 70A  giúp truyền tải năng lượng nhanh chóng. Chuẩn bảo vệ IP66 đảm bảo vận hành ổn định trong nhiều môi trường khác nhau. Hệ thống cũng hỗ trợ tùy chọn dây cáp 2-trong-1 cho phép kết nối song song, giúp kéo dài tuổi thọ và tối ưu hiệu suất.

Contact Us

Assured Reliability

  • IP66 protection degree

  • LiFePO4 battery cell & high-performance processors

  • Aerosol fire suppression for precise protection


Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Unique battery heating tech and wide temperature  tolerance

  • Optional parallel connection using a two-in-one cable  for easy capacity expansion and extend battery lifespan

  • Maximum 10% expansion of effective power over the entire  life cycle to increase cycle life (optimizer version)

  • 3-hour rapid equalization (optimizer version)


High Performance

  • 10.2-66.5 kWh wide capacity range

  • Max. 70A charging / discharging current

  • Cycle life > 6000 times

Flexible Adaptability

  • Compatible with TCBox-70, up to 3 towers of batteries

  • Compact and stackable for easy installation

  • Supporting direct battery expansion

  • Supporting mixed use of new and old batteries, supports  rapid capacity expansion, plug and play, no energy loss (optimizer version)


Product Parameters

  • T-HS10.2
  • T-HS15.3
  • T-HS20.4
  • T-HS25.6
  • T-HS30.7
  • T-HS35.8
  • T-HS40.9
  • T-HS46.0
  • T-HS51.2
  • T-HS56.3
  • T-HS61.4
  • T-HS66.5
  • T-HS10.2
    • SYSTEM SPECIFICATION
      Number of modules 2
      Rated energy 10.2 kWh
      Rated voltage 102.4 V
      Rated power

      6.1 kW
      Dimension (W x H x D) 600 × 621 × 376 mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Net weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS15.3
    • SYSTEM SPECIFICATION
      Number of modules 3
      Rated energy 15.3 kWh
      Rated voltage 153.6 V
      Rated power

      9.2 kW
      Dimension (W x H x D) 600x789 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS20.4
    • SYSTEM SPECIFICATION
      Number of modules 4
      Rated energy 20.4 kWh
      Rated voltage 204.8 V
      Rated power

      12.3 kW
      Dimension (W x H x D) 600x957x376 mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 46 kg / 47.1 kg (with optimizer)
      Battery weight 46 kg


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS25.6
    • SYSTEM SPECIFICATION
      Number of modules 5
      Rated energy 25.6 kWh
      Rated voltage 256.0 V
      Rated power

      15.4 kW
      Dimension (W x H x D) 600 x 1125 x 376 mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS30.7
    • SYSTEM SPECIFICATION
      Number of modules 6
      Rated energy 30.7 kWh
      Rated voltage 307.2 V
      Rated power

      18.4 kW
      Dimension (W x H x D) 600x1293 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS35.8
    • SYSTEM SPECIFICATION
      Number of modules 7
      Rated energy 35.8 kWh
      Rated voltage 358.4 V
      Rated power

      21.5 kW
      Dimension (W x H x D) 600 x1461 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS40.9
    • SYSTEM SPECIFICATION
      Number of modules 8
      Rated energy 40.9 kWh
      Rated voltage 409.6 V
      Rated power

      24.6 kW
      Dimension (W x H x D) 600x1629x376 mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS46.0
    • SYSTEM SPECIFICATION
      Number of modules 9
      Rated energy 46.0 kWh
      Rated voltage 460.8 V
      Rated power

      27.6 kW
      Dimension (W x H x D)

      600x957x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS51.2
    • SYSTEM SPECIFICATION
      Number of modules 10
      Rated energy 51.2 kWh
      Rated voltage 512.0 V
      Rated power

      30.7 kW
      Dimension (W x H x D)

      600x1125x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS56.3
    • SYSTEM SPECIFICATION
      Number of modules 11
      Rated energy 56.3 kWh
      Rated voltage 563.2 V
      Rated power

      33.8 kW
      Dimension (W x H x D)

      600x1293x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS61.4
    • SYSTEM SPECIFICATION
      Number of modules 12
      Rated energy 61.4 kWh
      Rated voltage 614.4 V
      Rated power

      36.9 kW
      Dimension (W x H x D)

      600x1293x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66


  • T-HS66.5
    • SYSTEM SPECIFICATION
      Number of modules 13
      Rated energy 66.5 kWh
      Rated voltage 665.6 V
      Rated power

      39.9 kW
      Dimension (W x H x D)

      600x1461x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H) 600 × 225 × 376 mm
      BMS Weight 18.5 kg
      Battery type Li-ion (LFP)
      Module capacity 5.1 kWh
      Battery dimension (W x H x D) 600 × 168 × 376 mm
      Battery weight 46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      Environment Outdoor / Indoor
      Protection degree IP66
